Wutopia Lab completes whale shaped gateway for residential island in Henan

Rafael CunhaDESIGN4 days ago3.7K ViewsShort URL

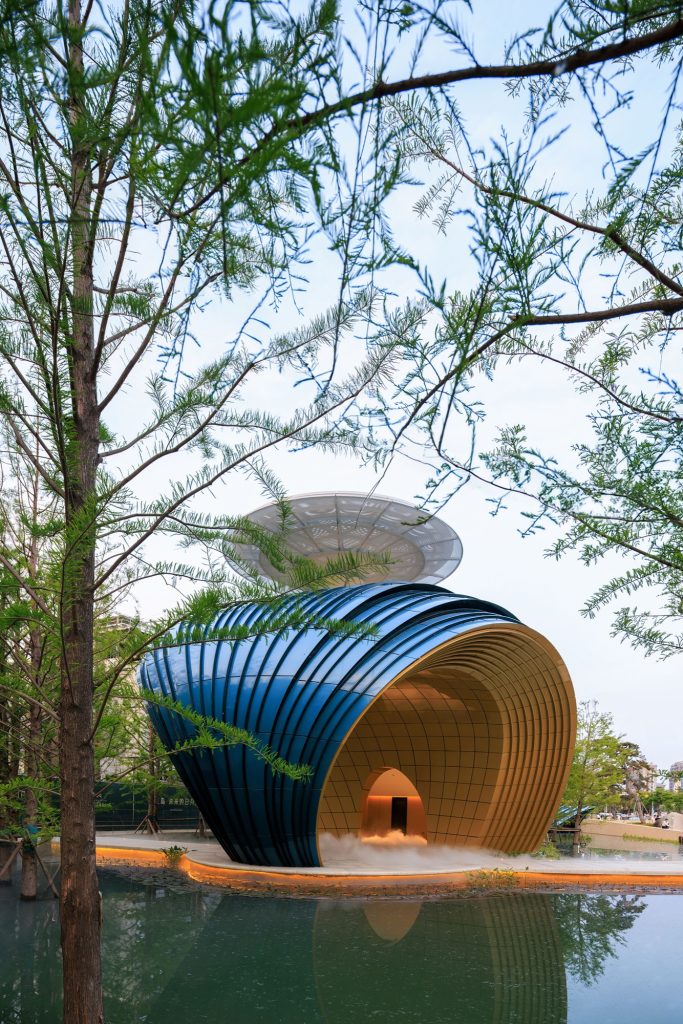

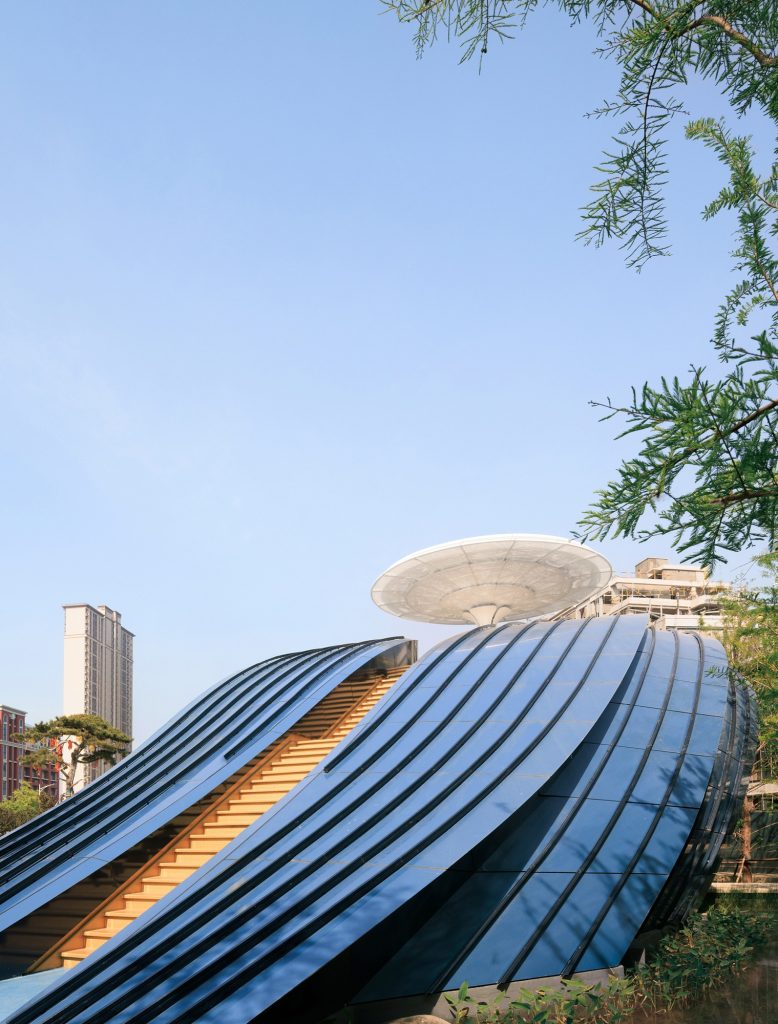

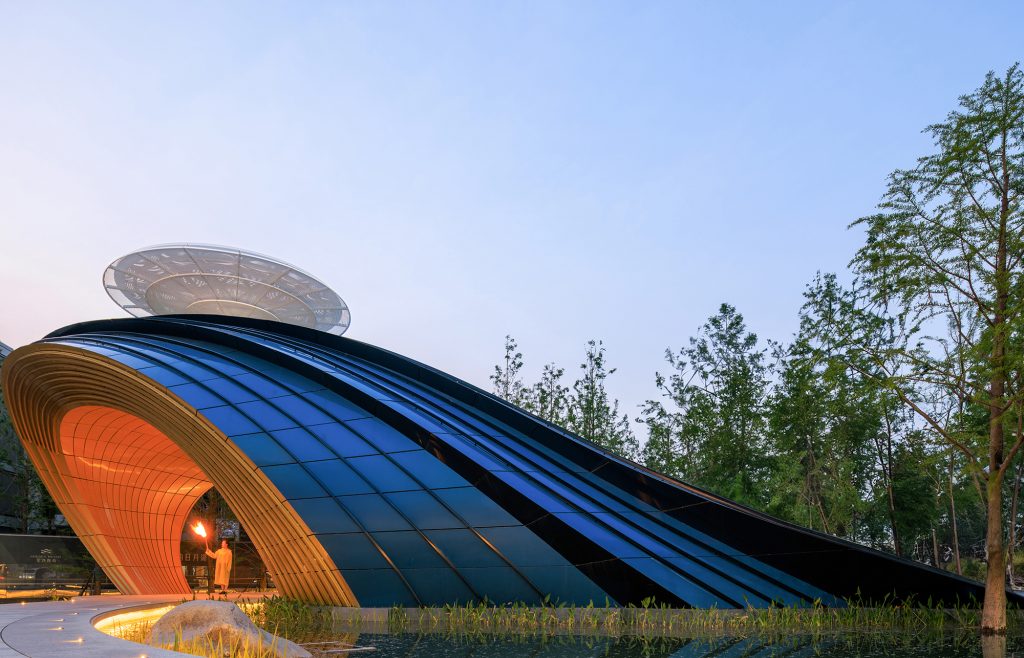

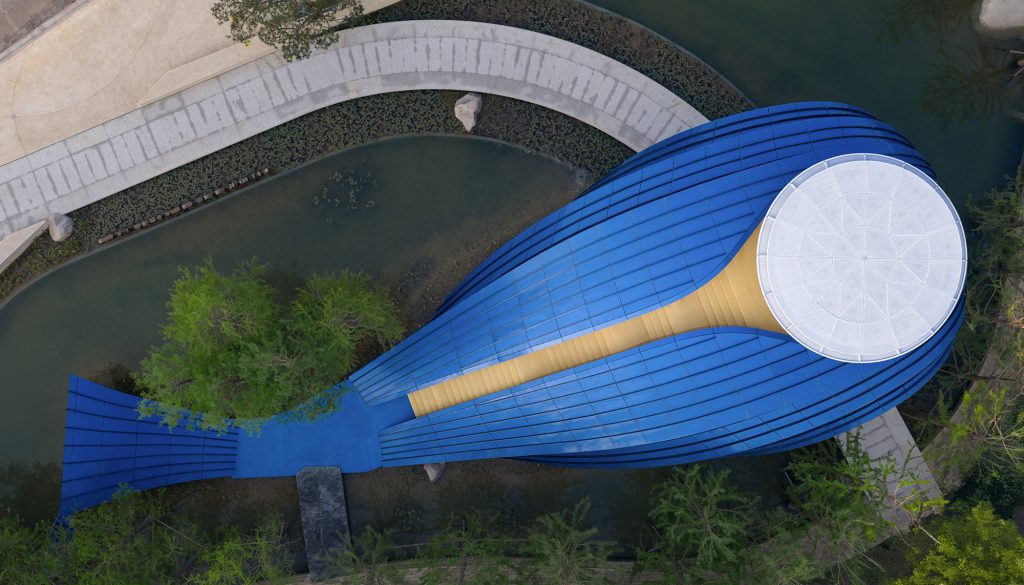

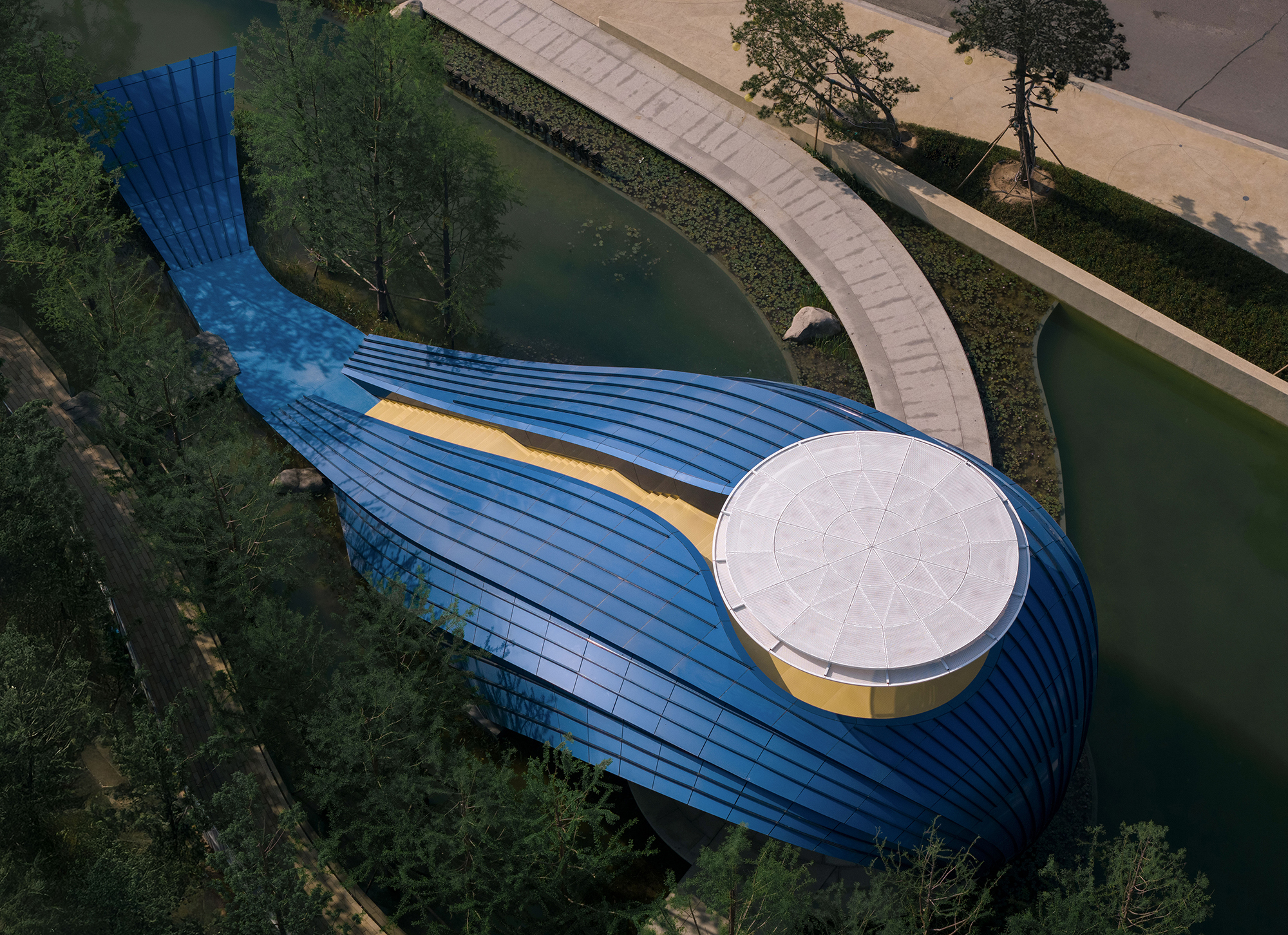

Wutopia Lab has completed Whale Gate, a sculptural gateway for Golden Island by Jinsha Group in Shangqiu, Henan. Set within a water landscape and partly screened by trees, the structure appears less like a conventional residential entrance than a blue biomorphic figure rising from the garden.

Completed in January 2026, the project was conceived as an emotional threshold. The client asked for an entrance that could create the feeling of crossing into another world on returning home. This ambition resonated with the wider masterplan of Jinsha Golden Island, where residential buildings are arranged like an archipelago among water, planting and open ground.

For architect Yu Ting, this landscape suggested the ancient Chinese imagination of mythical islands at sea: places removed from the pressures of ordinary life and suspended between reality and desire. Whale Gate translates this idea into architecture, turning the daily act of coming home into a symbolic passage.

The project reinterprets the image of a whale not as a literal figure, but as an abstract architectural body. In maritime myths and legends, whales often occupy an uncertain position between the known world and the depths of the unknown. At Golden Island, this ambiguity becomes spatial. Residents pass through the golden eye of the whale before entering the domestic landscape beyond.

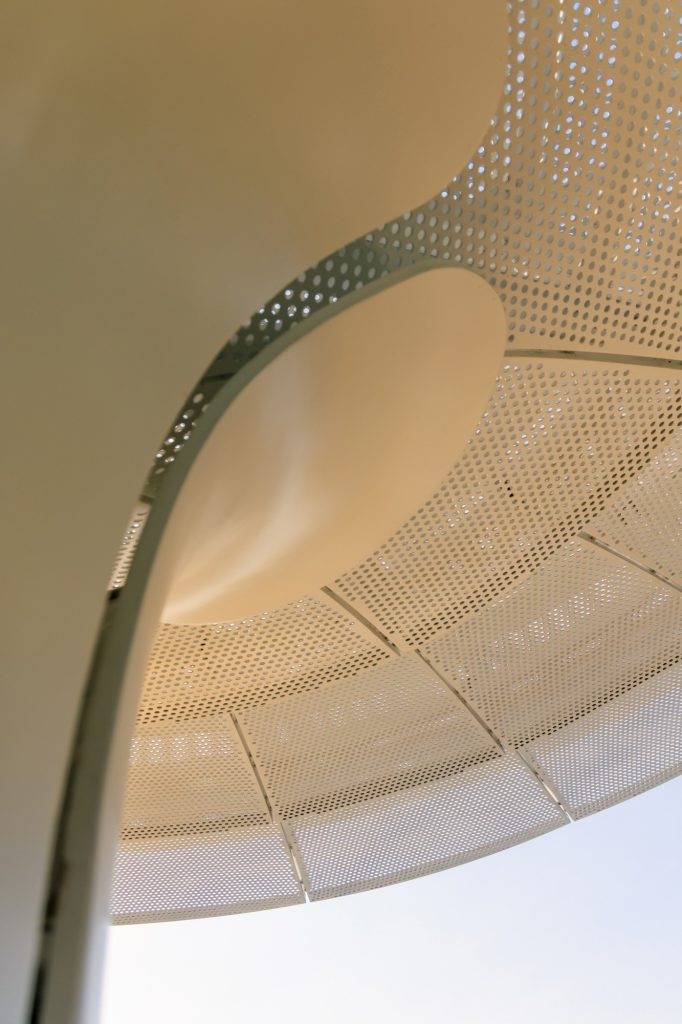

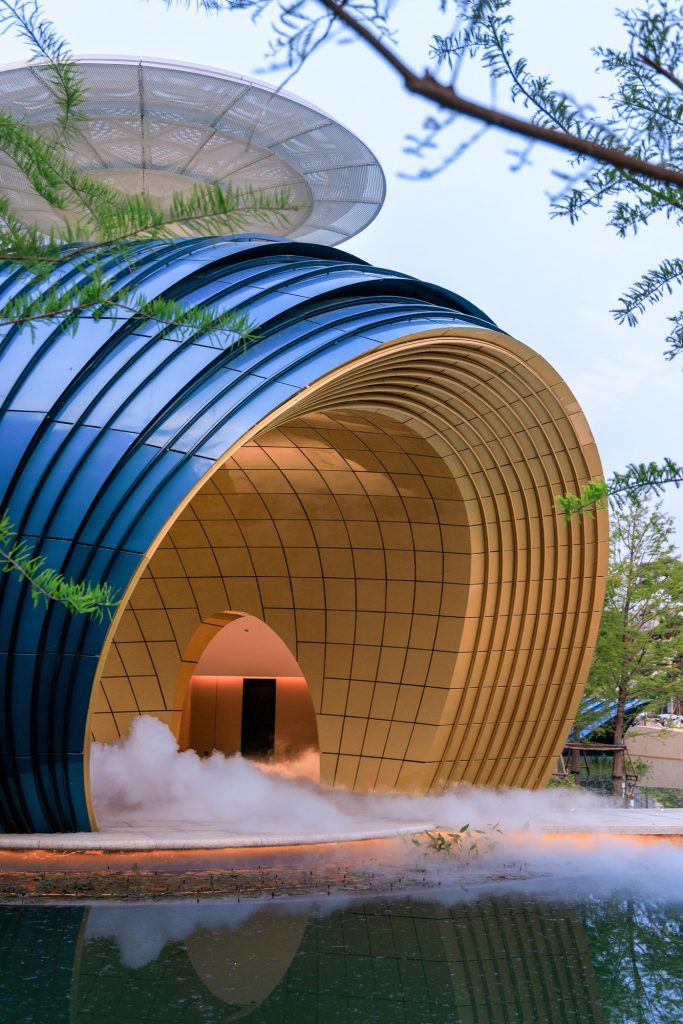

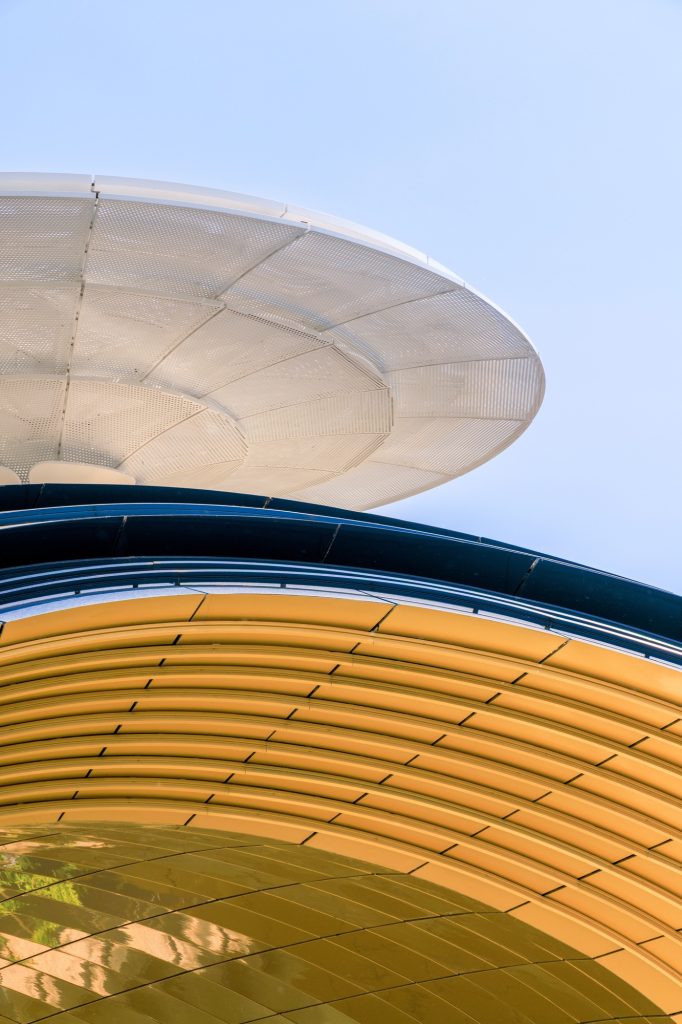

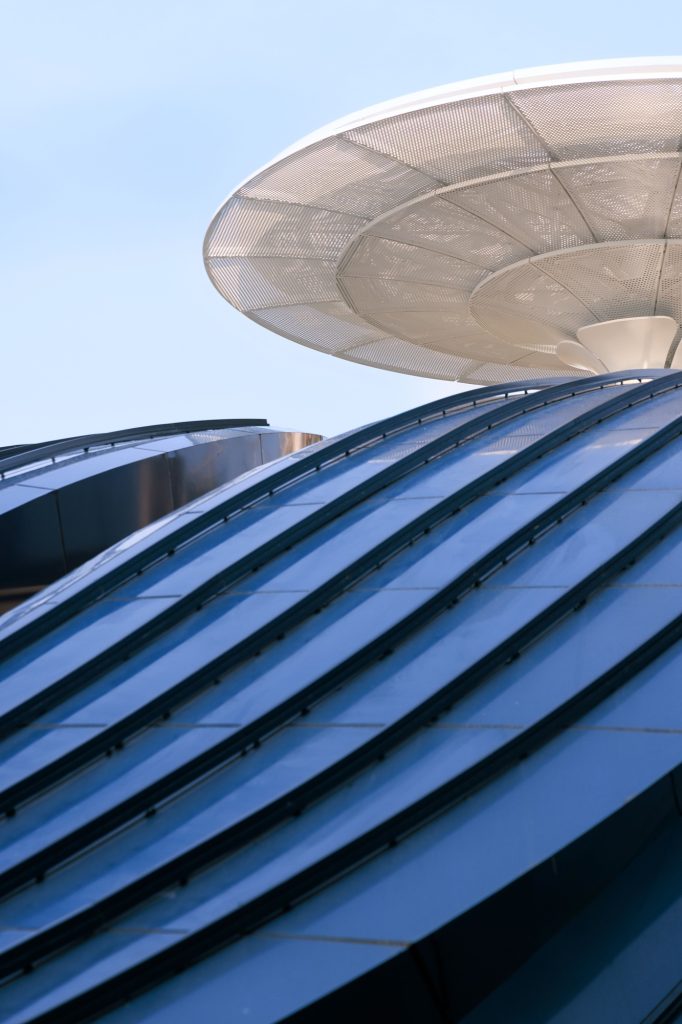

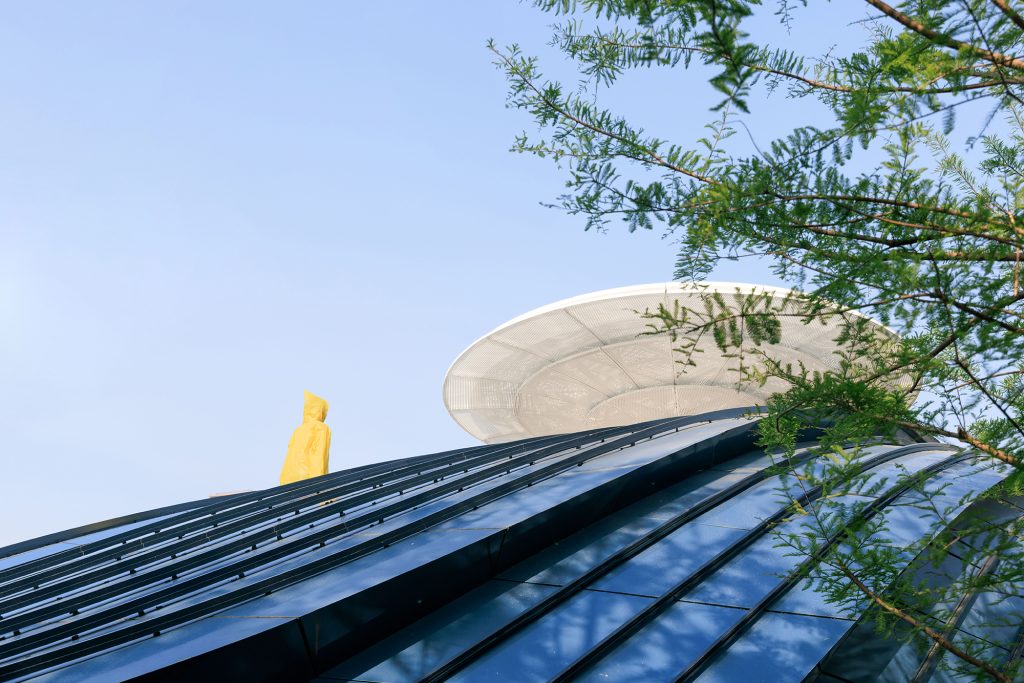

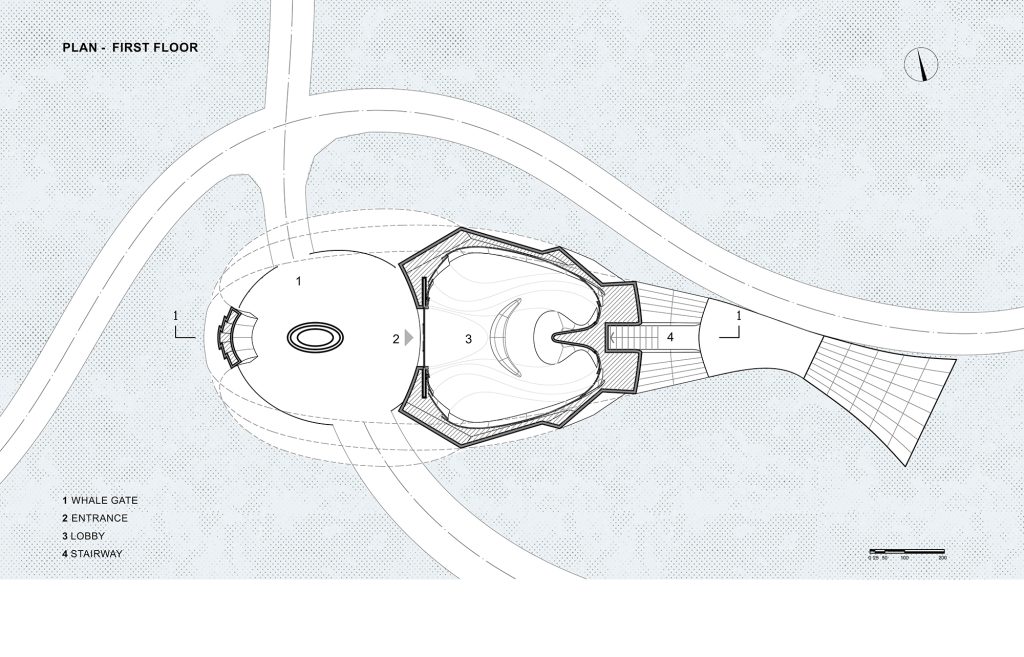

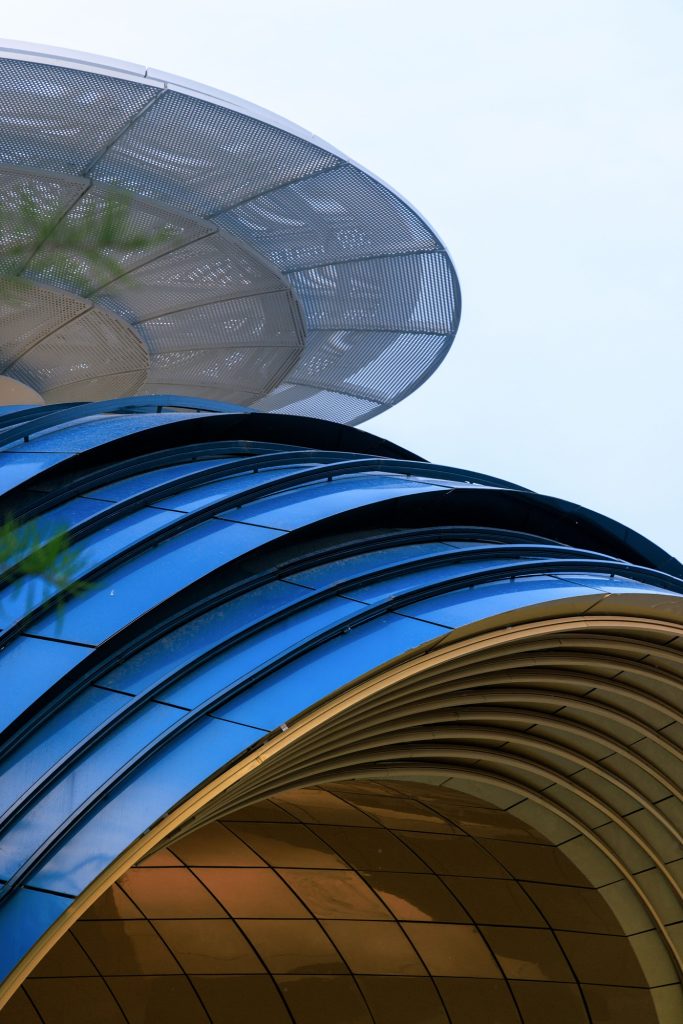

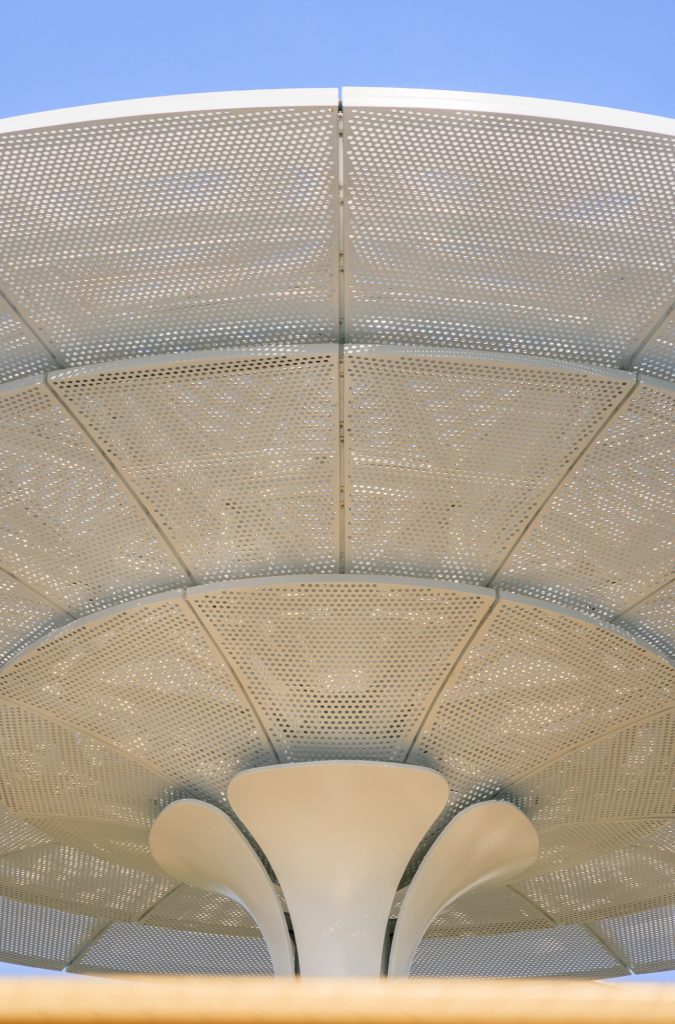

A vertical opening cuts through the blue volume to form the main entrance. Above it, perforated white aluminium panels evoke the spray of water while also acting as a canopy. The result is a structure that is at once figurative and restrained, allowing the image of the whale to remain present without becoming illustrative.

Rather than concealing symbolism behind a purely technical or parametric language, the project embraces its narrative dimension. For Wutopia Lab, the gateway is not only an infrastructural object. It is also a psychological device, capable of shaping perception, memory and the emotional rhythm of return.

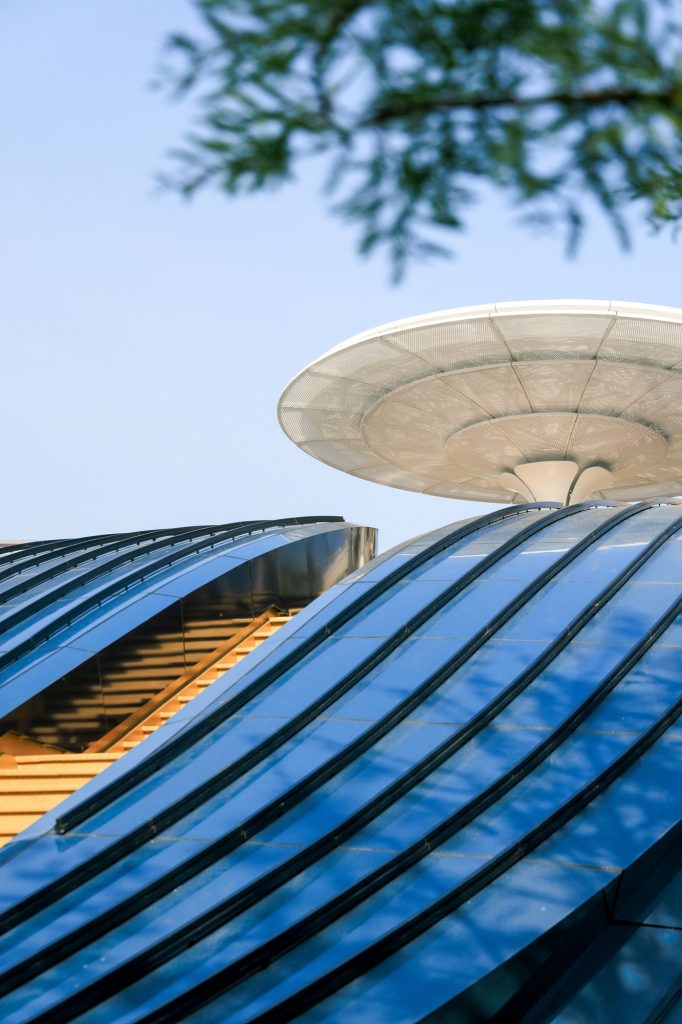

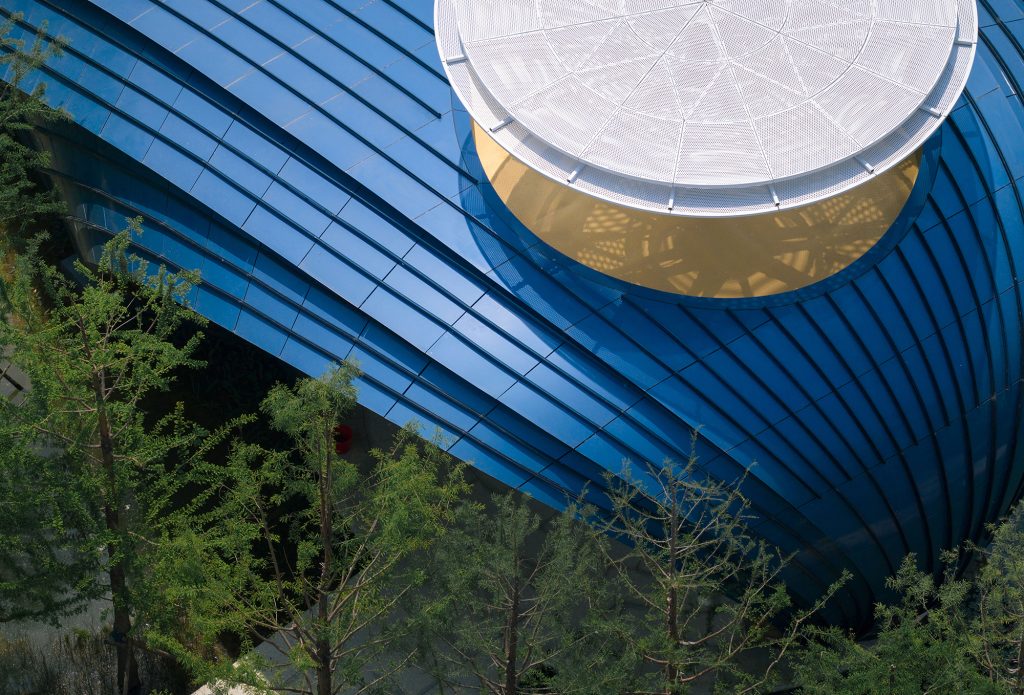

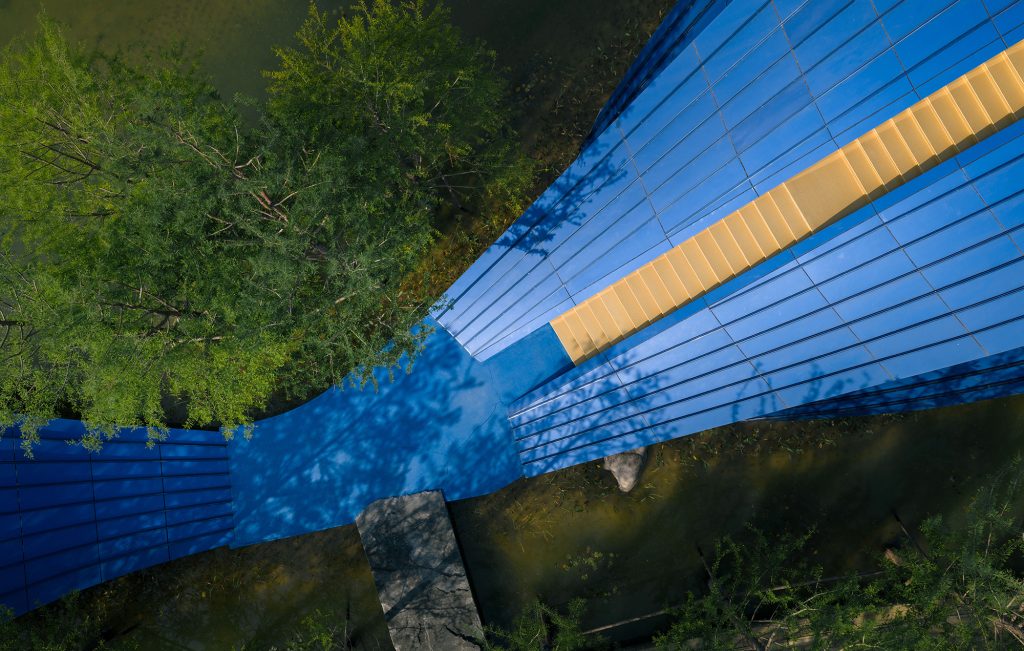

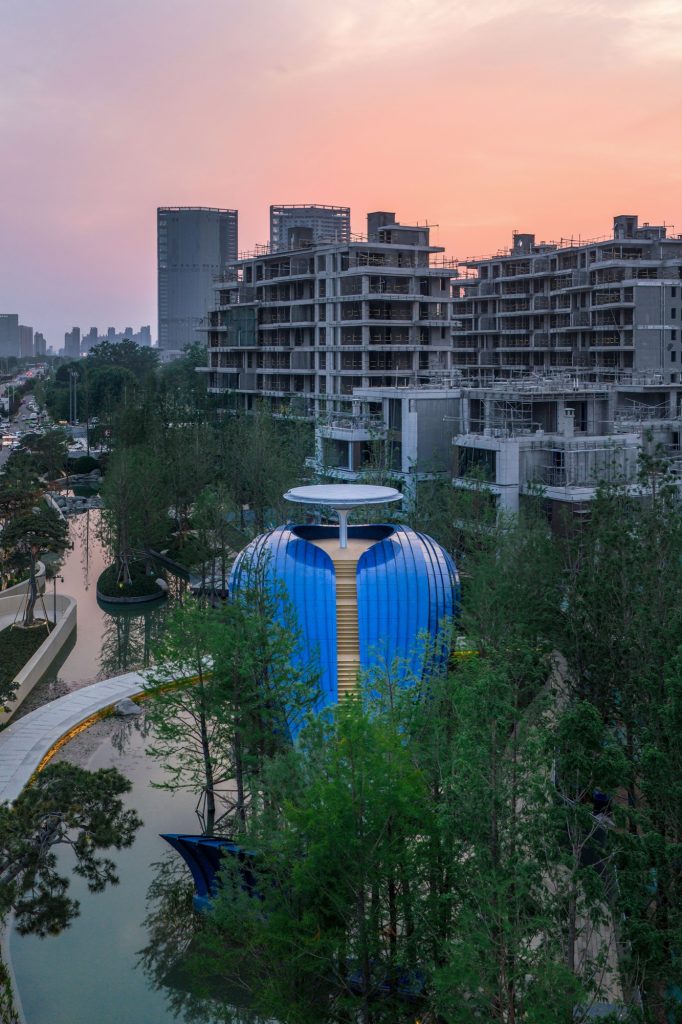

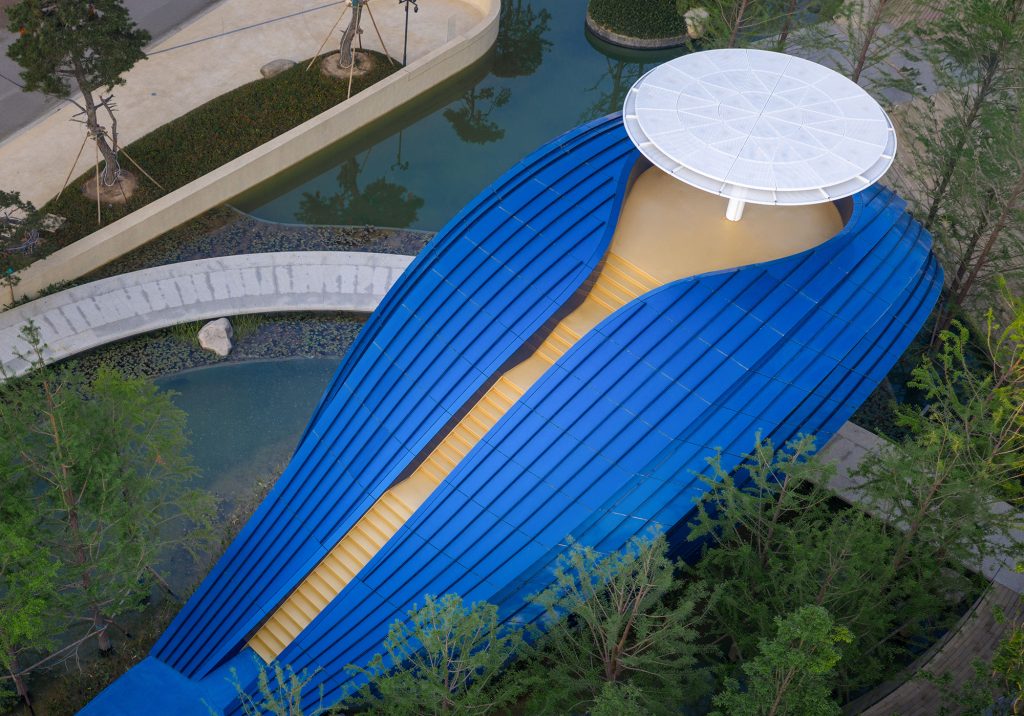

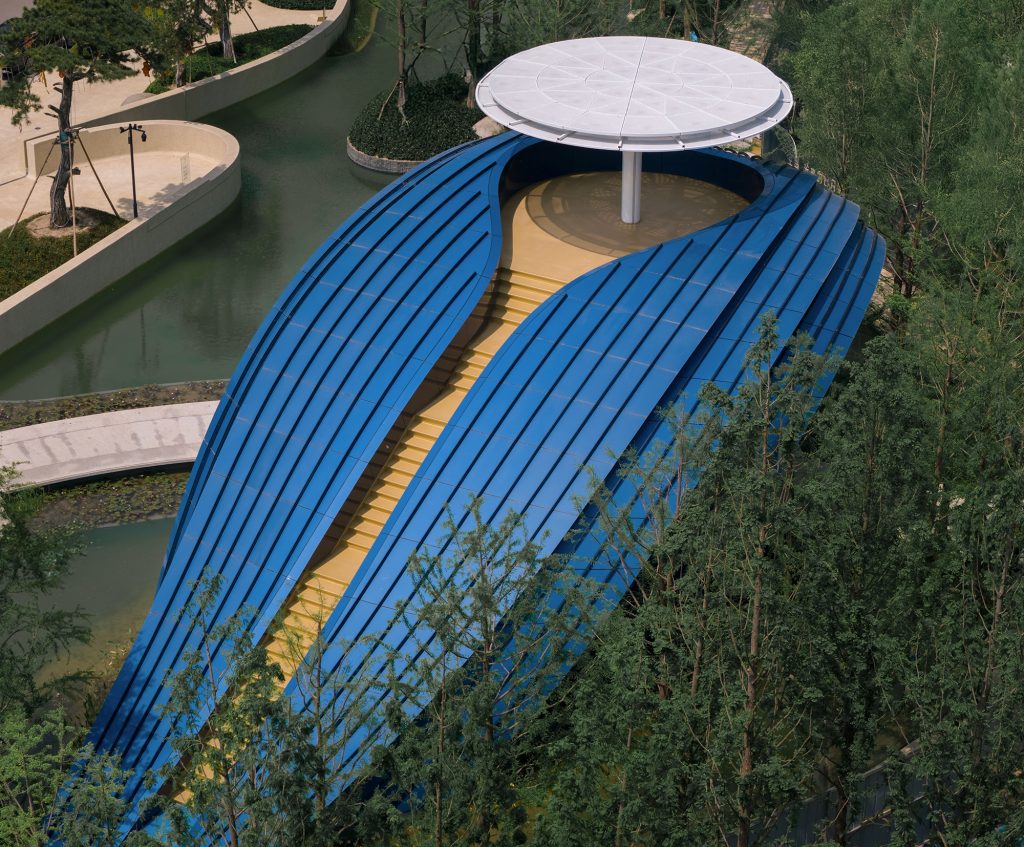

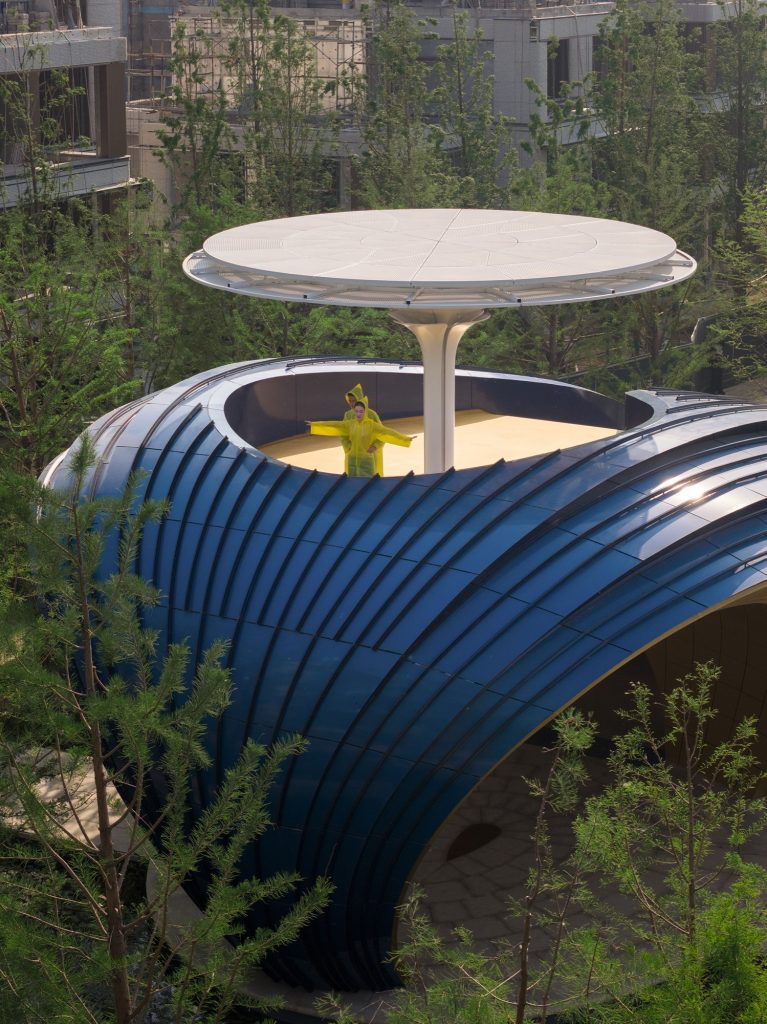

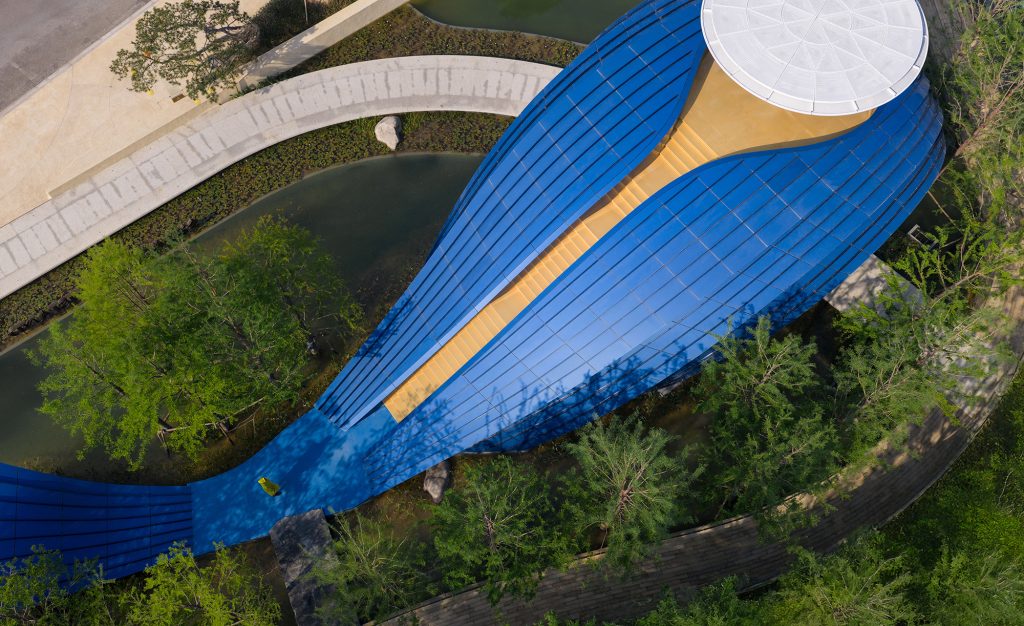

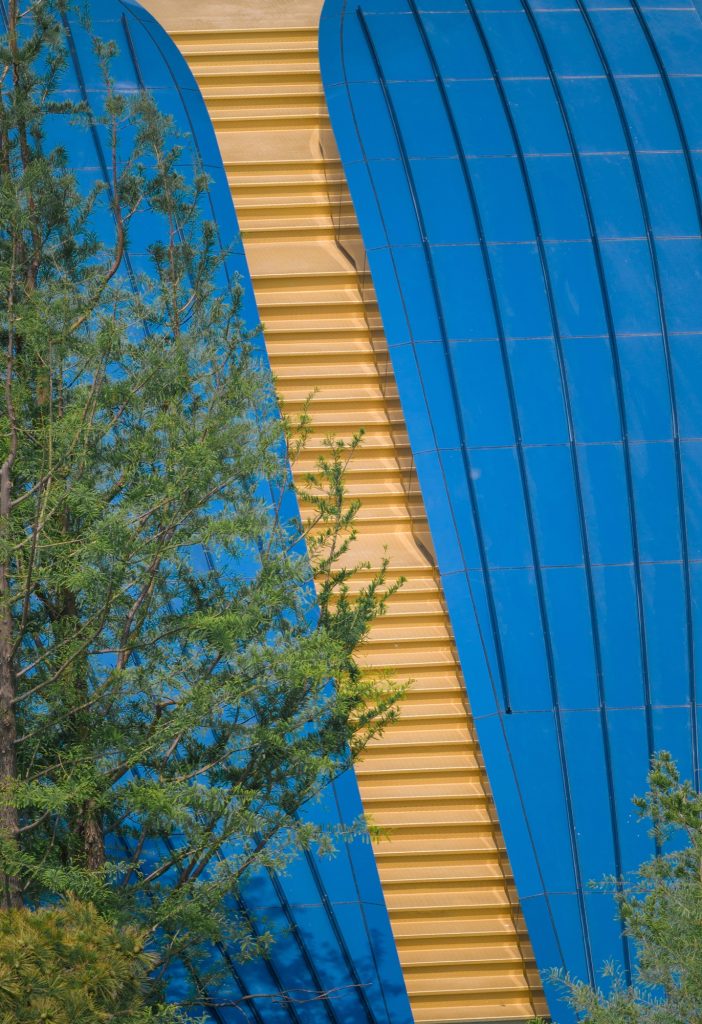

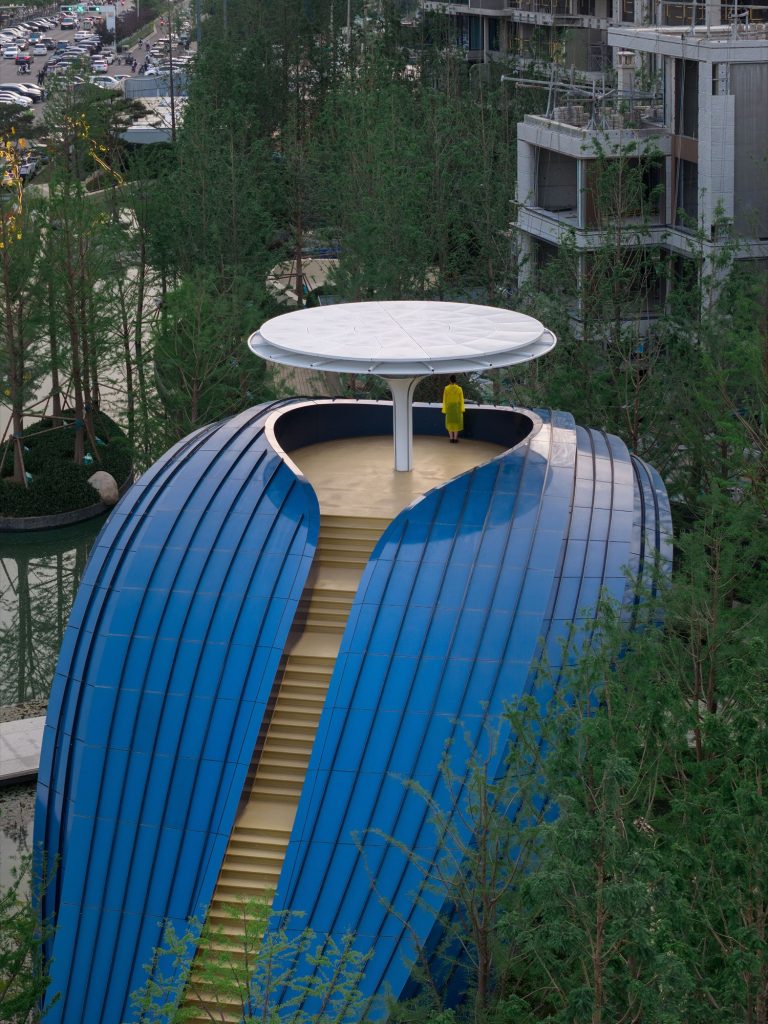

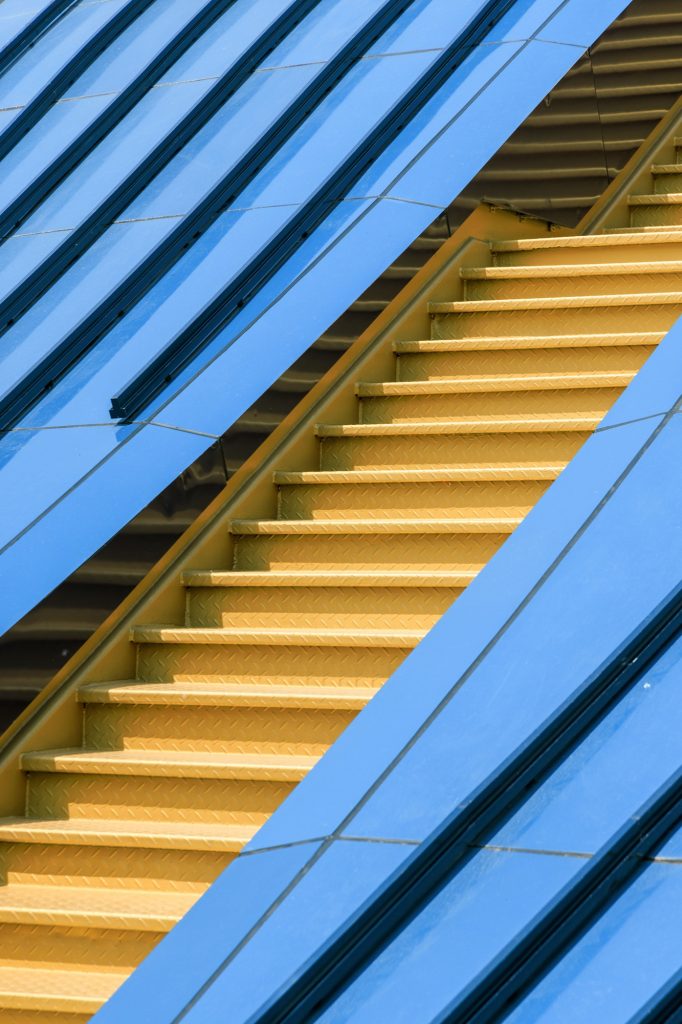

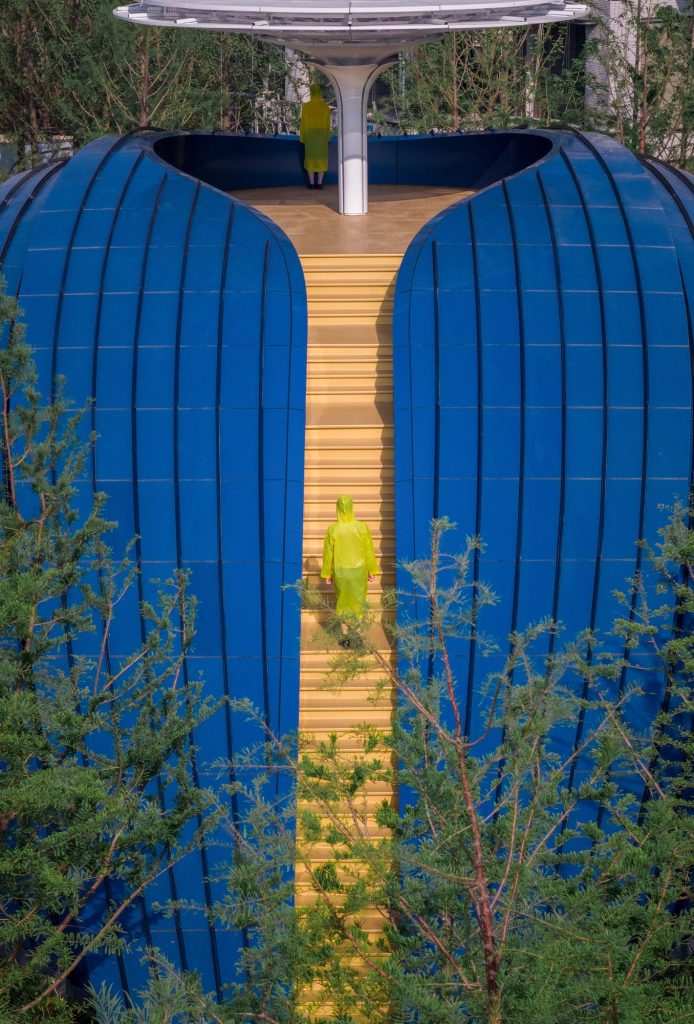

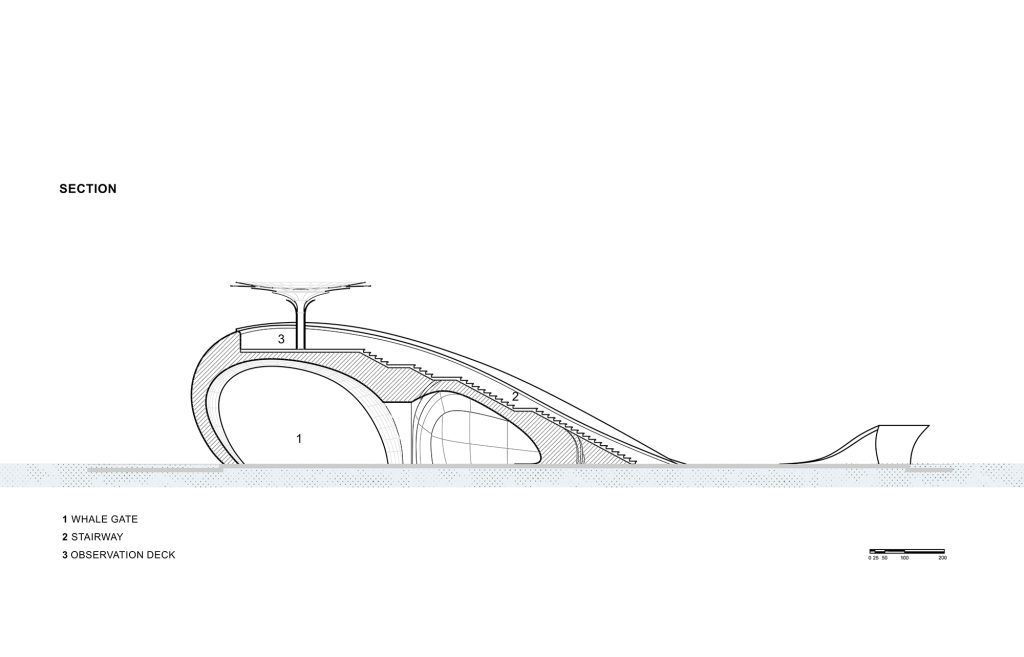

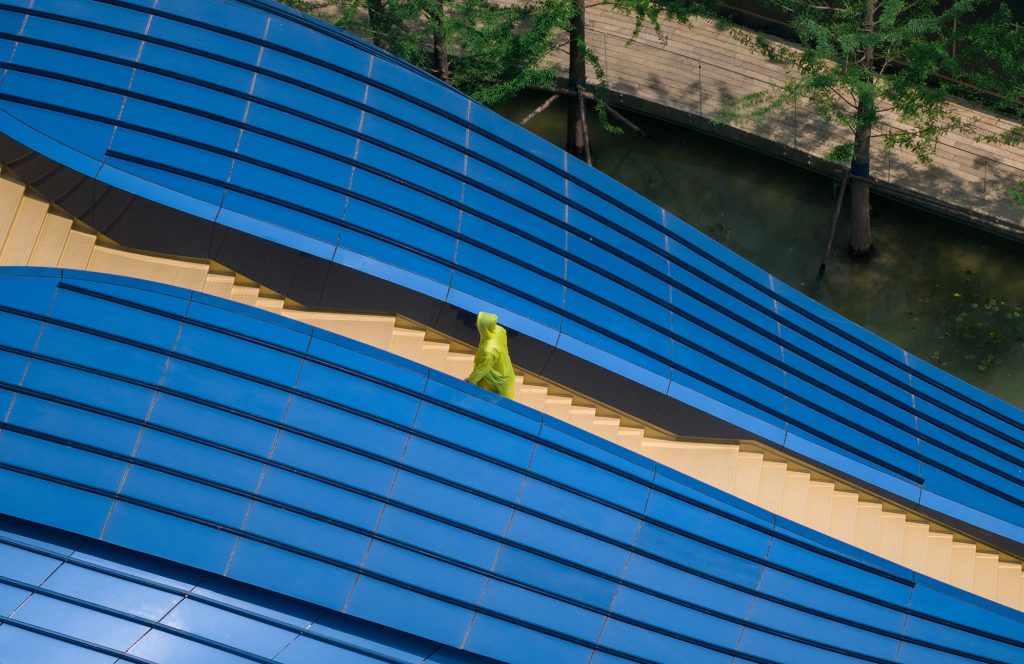

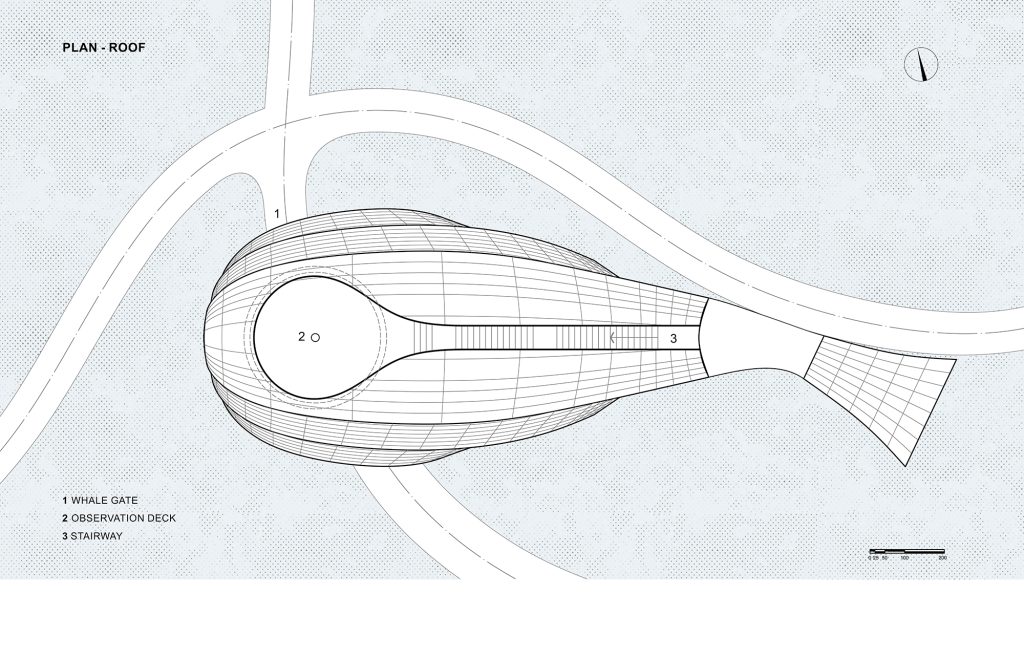

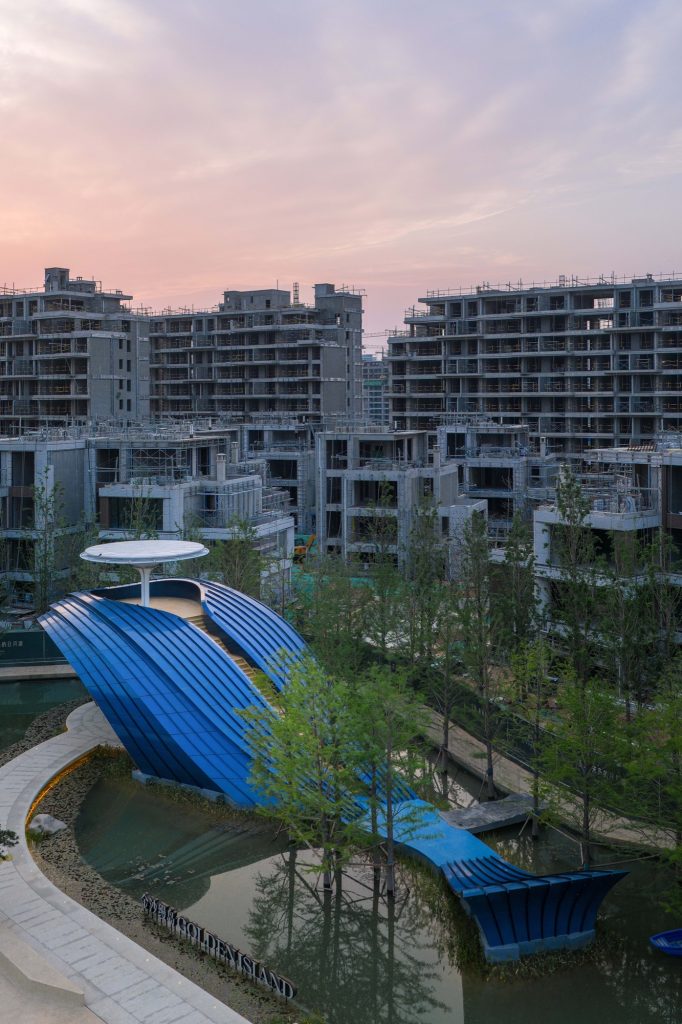

A viewing platform, reached by golden stairs, leads to the top of the structure and is accessible only to residents. From this elevated point, the landscape of the compound unfolds across water, trees and buildings still under construction. The gateway therefore becomes more than an entry point. It marks a shift from the density of the city to a more secluded domestic world.

This sense of transition is central to the project. Whale Gate does not simply signal arrival. It stages it. By inserting a mythological fragment into an everyday residential development, the structure gives symbolic weight to a familiar routine and transforms the entrance into a moment of imagination.

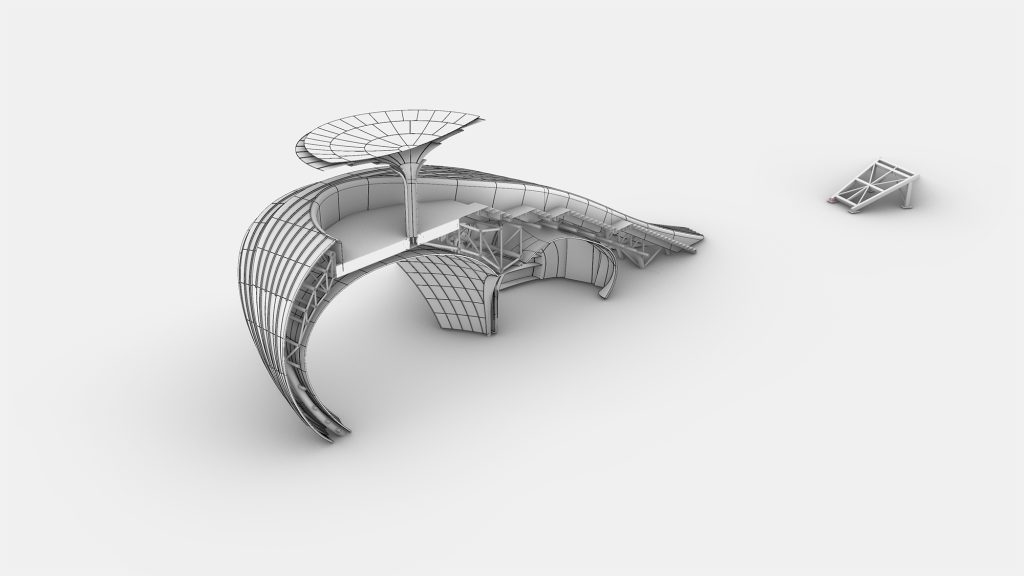

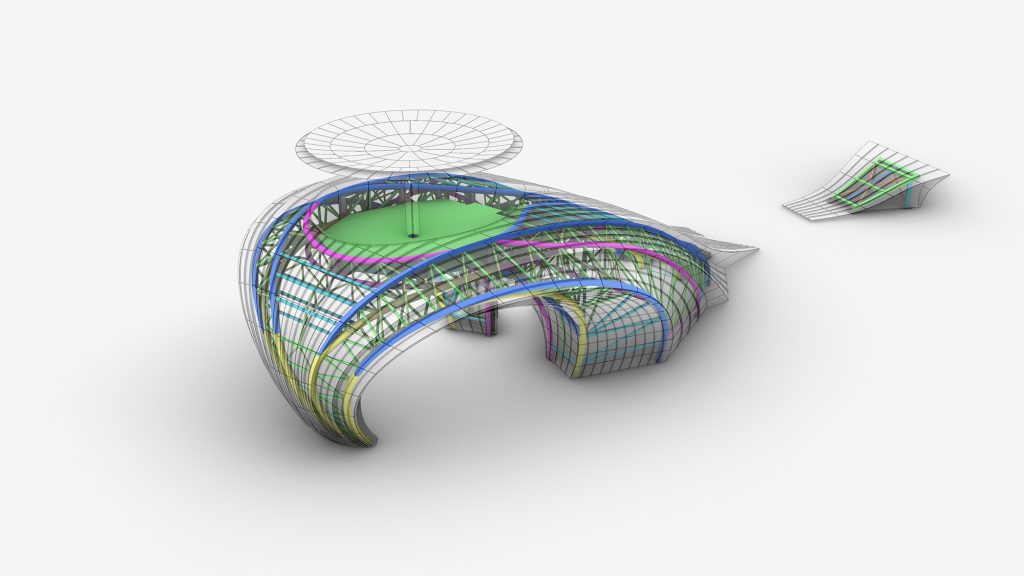

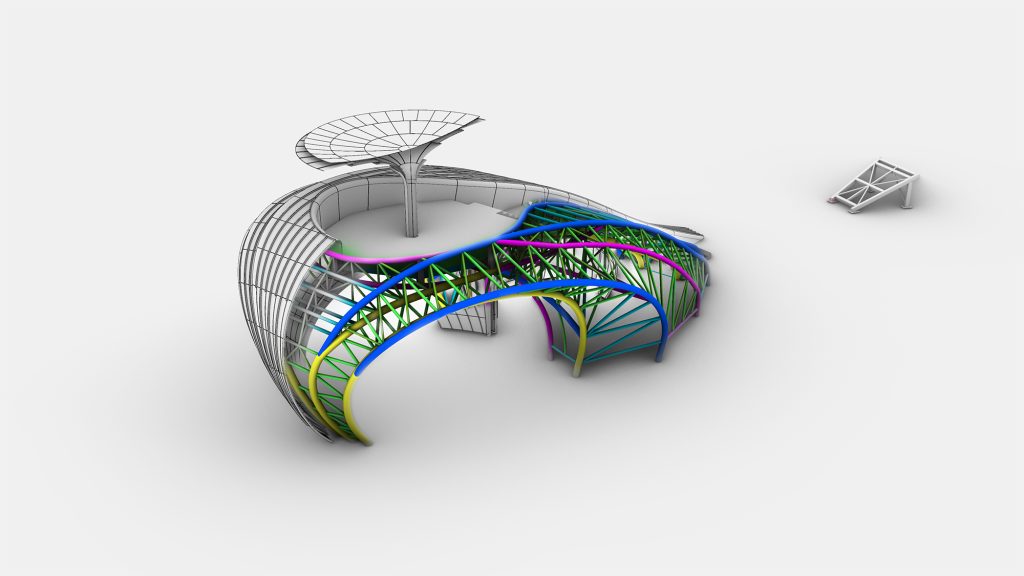

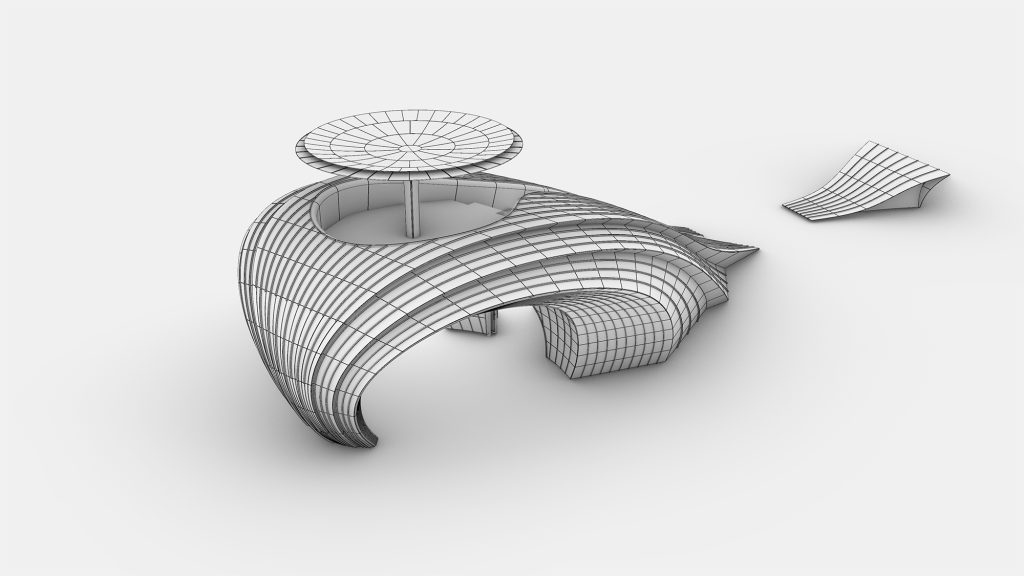

Behind its smooth figure, Whale Gate is formed from a six layer structural system comprising a primary steel frame, connection rods, an aluminium substructure, waterproofing layers, double curved aluminium honeycomb composite panels and fin shaped profiles. The structure contains nearly 4,000 individual components and weighs approximately 60 tons.

Its twisted geometry required extensive custom fabrication. Steel and aluminium members were produced according to different curvatures and torsions, while each steel column was divided into seven to fifteen segments. Nearly 10,000 three dimensional coordinate points were used during construction to achieve millimetre level precision.

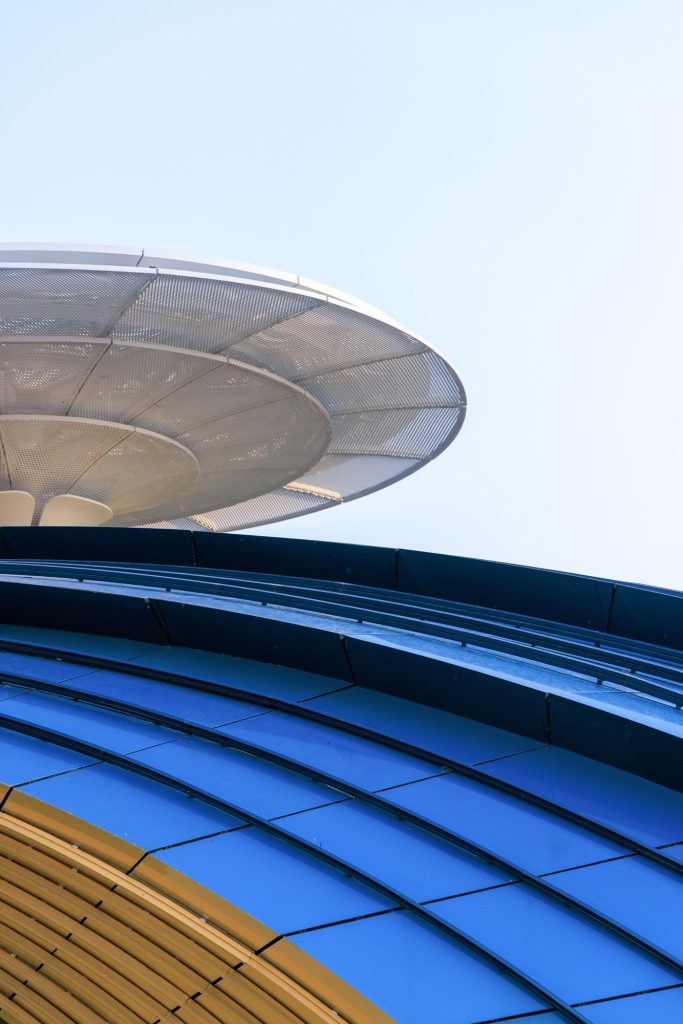

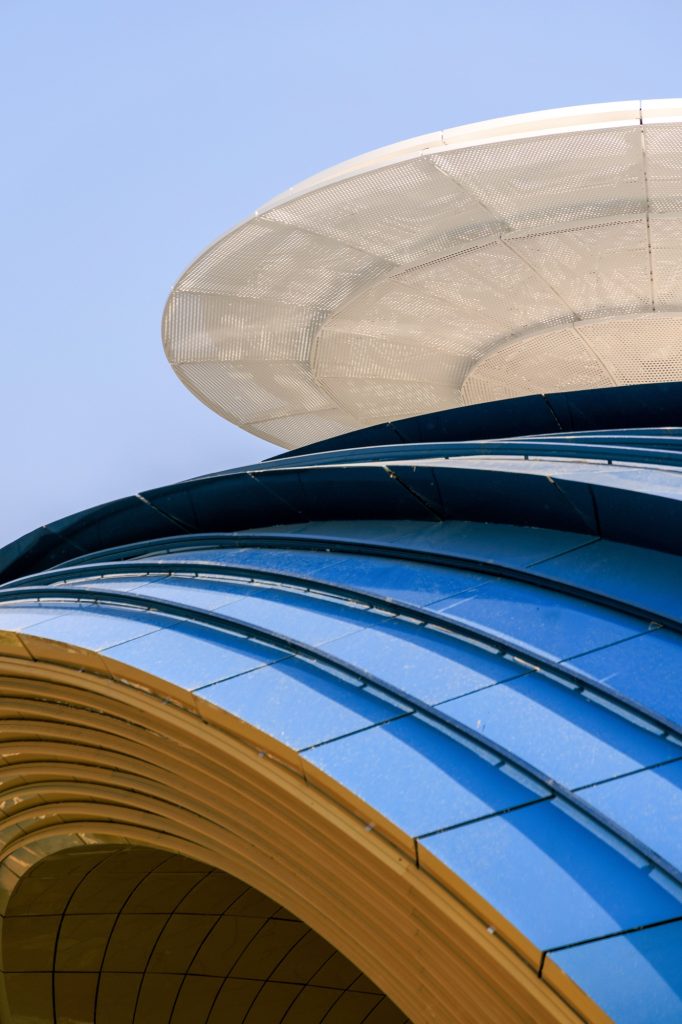

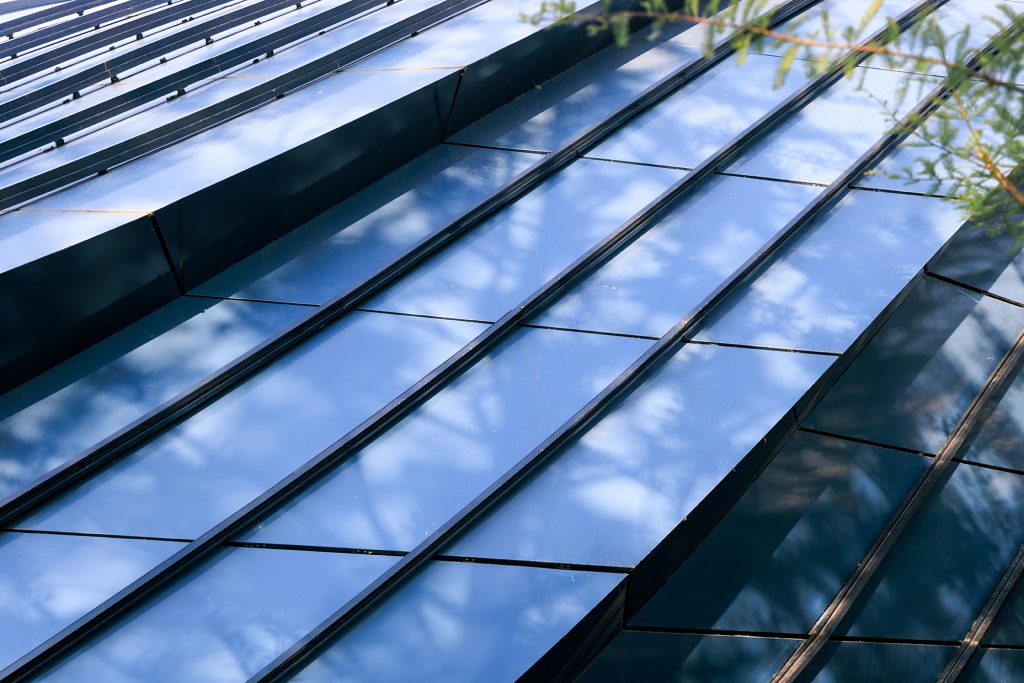

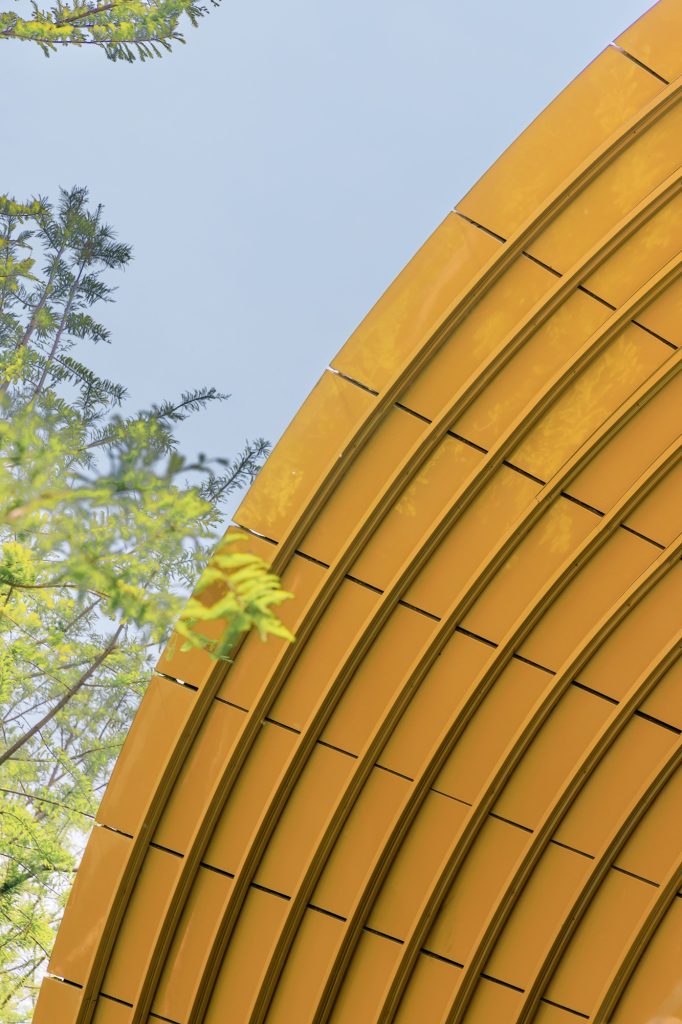

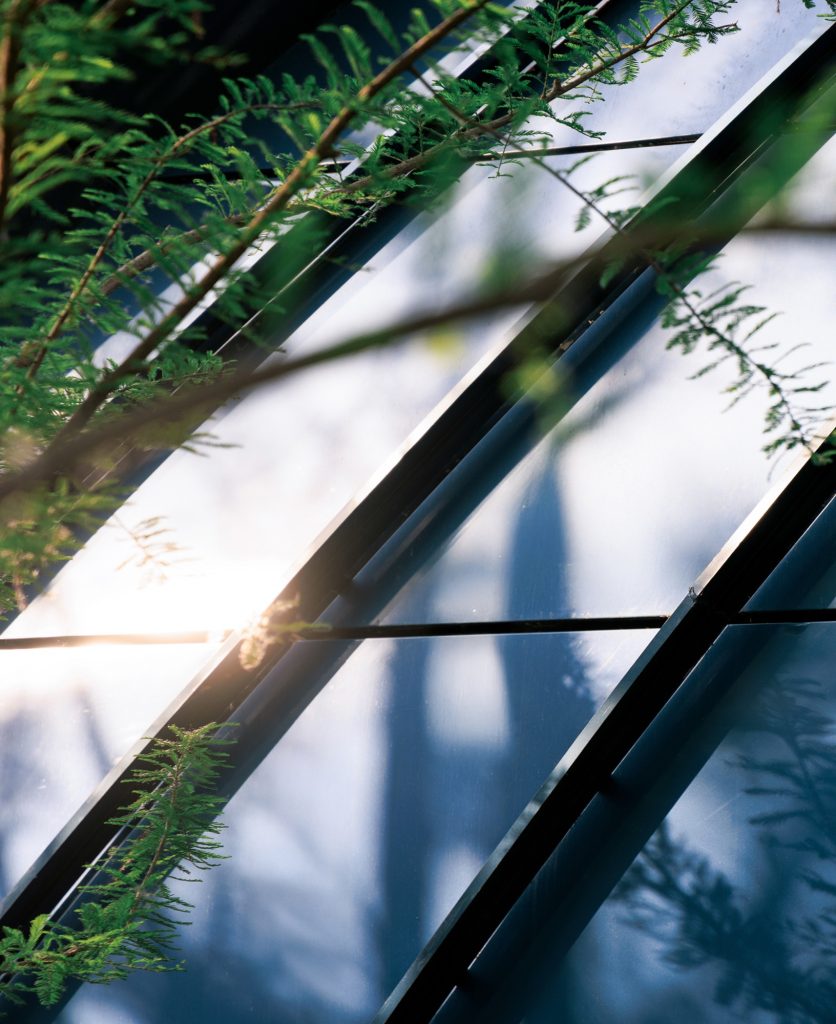

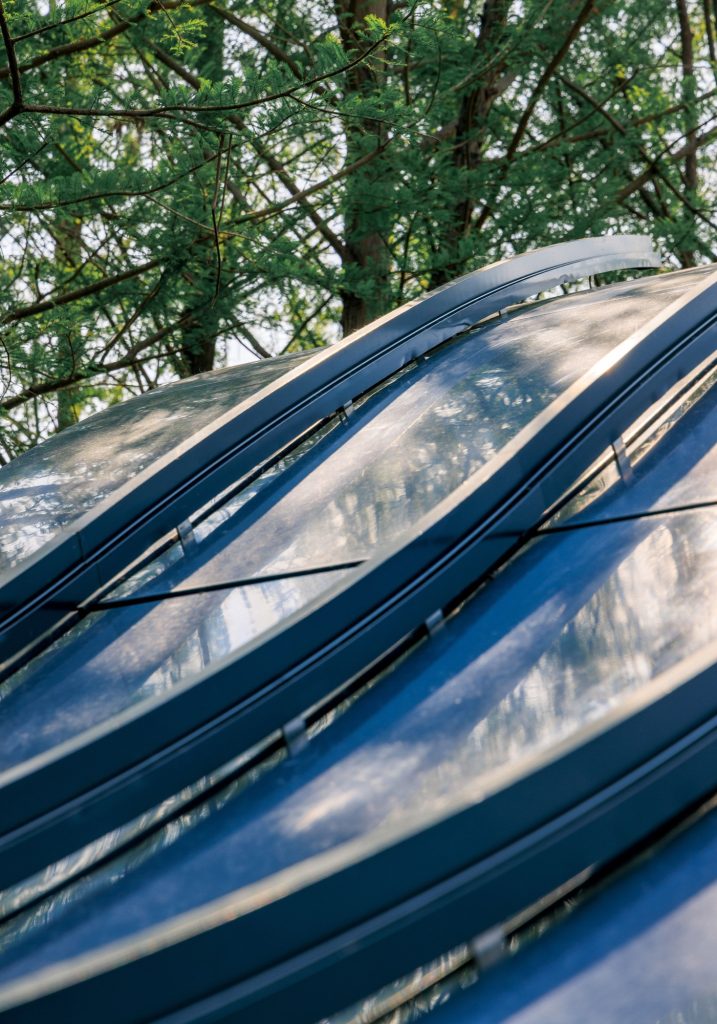

The design team selected aluminium honeycomb composite panels for their balance of lightness, durability and ability to form complex curved surfaces. A total of 1,170 uniquely shaped aluminium panels were fabricated for the project, allowing the whale form to appear continuous despite the highly customised nature of its construction.

During the opening ceremony, a red firework was ignited from the centre of the gateway. For a brief moment, the blue structure seemed to come alive within the night landscape, reinforcing the project’s interest in fantasy, return and the emotional construction of domestic space.

Whale Gate ultimately operates not only as a visual landmark, but as a small spatial allegory embedded within ordinary urban life. Between infrastructure and image, architecture and myth, it asks how a residential threshold might still carry wonder.
